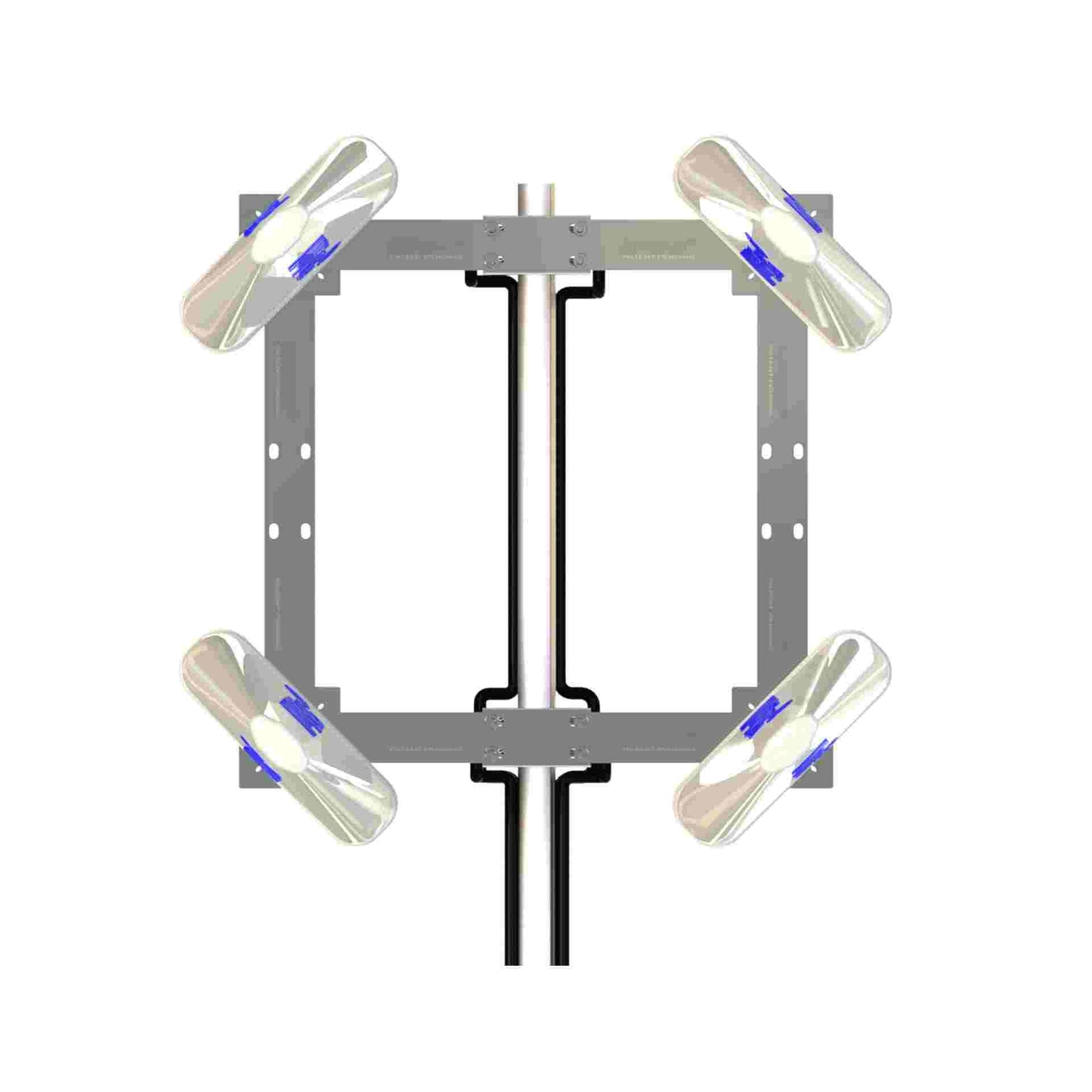

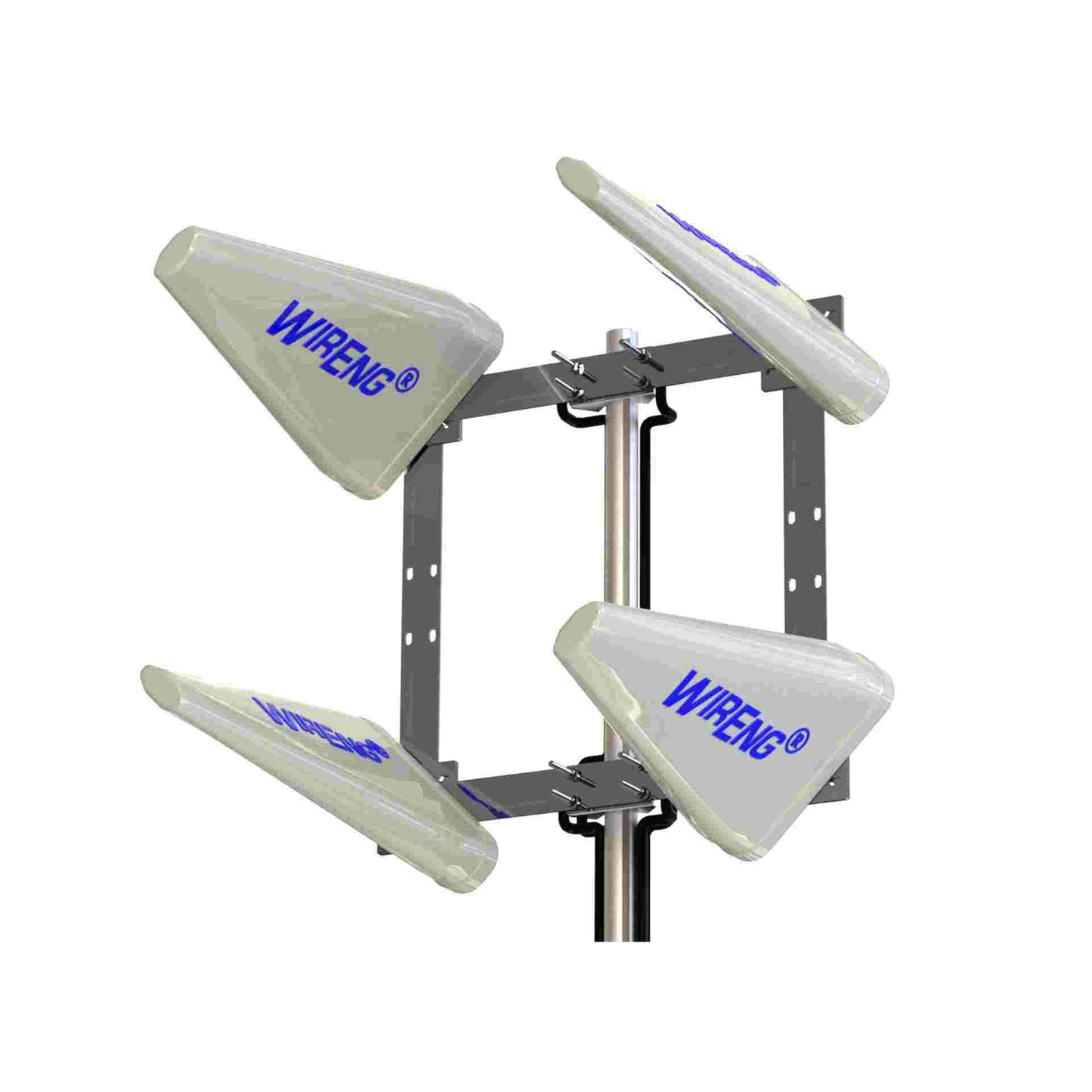

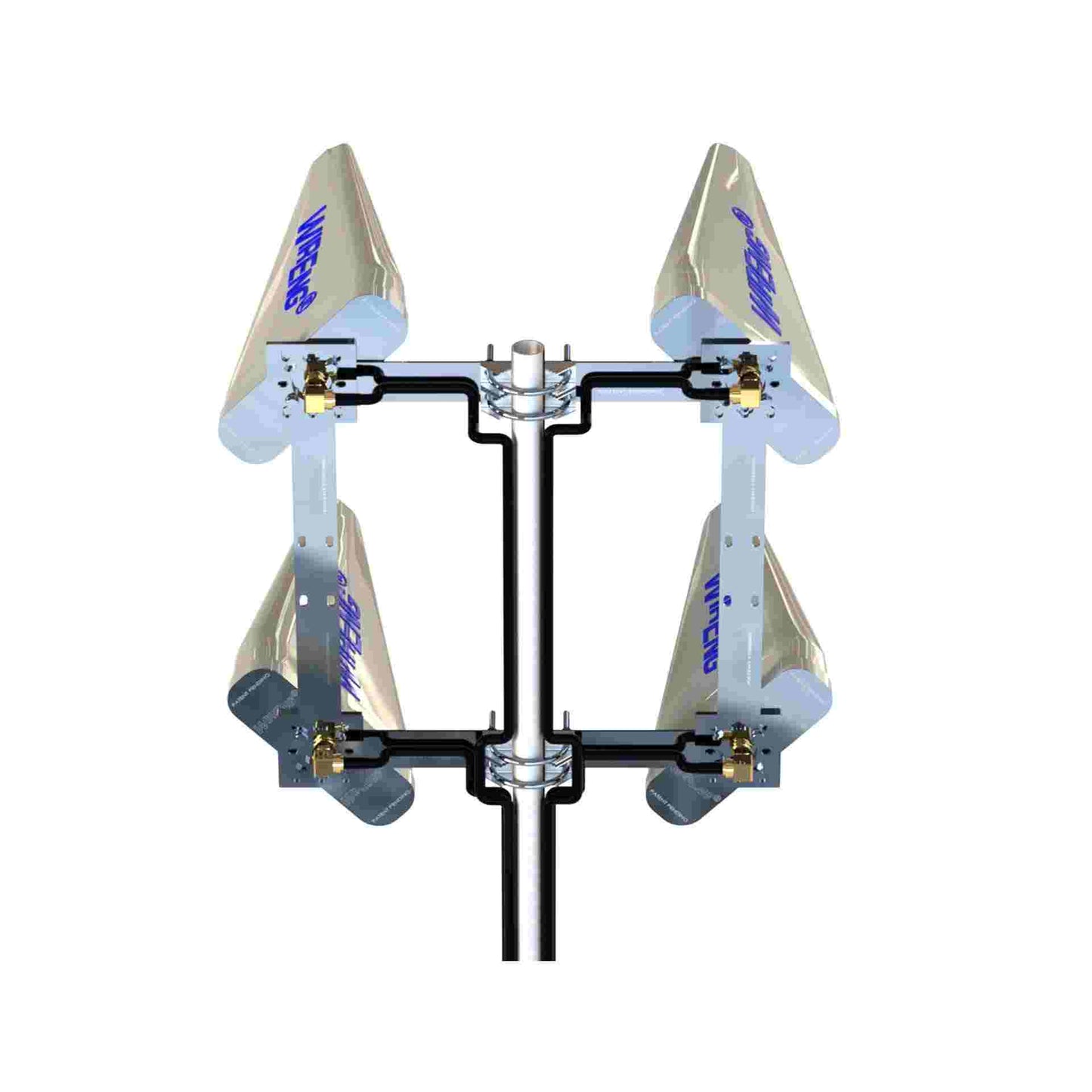

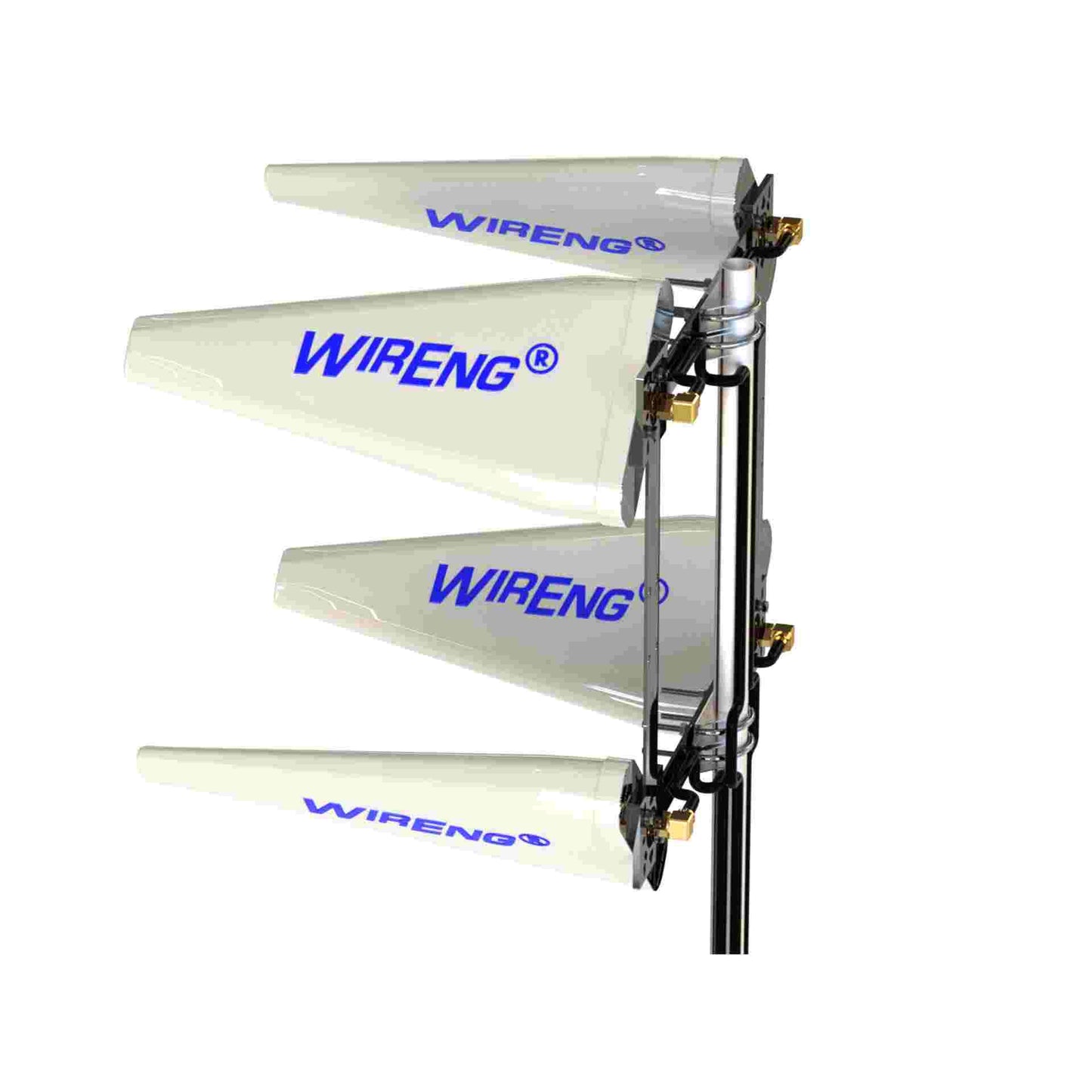

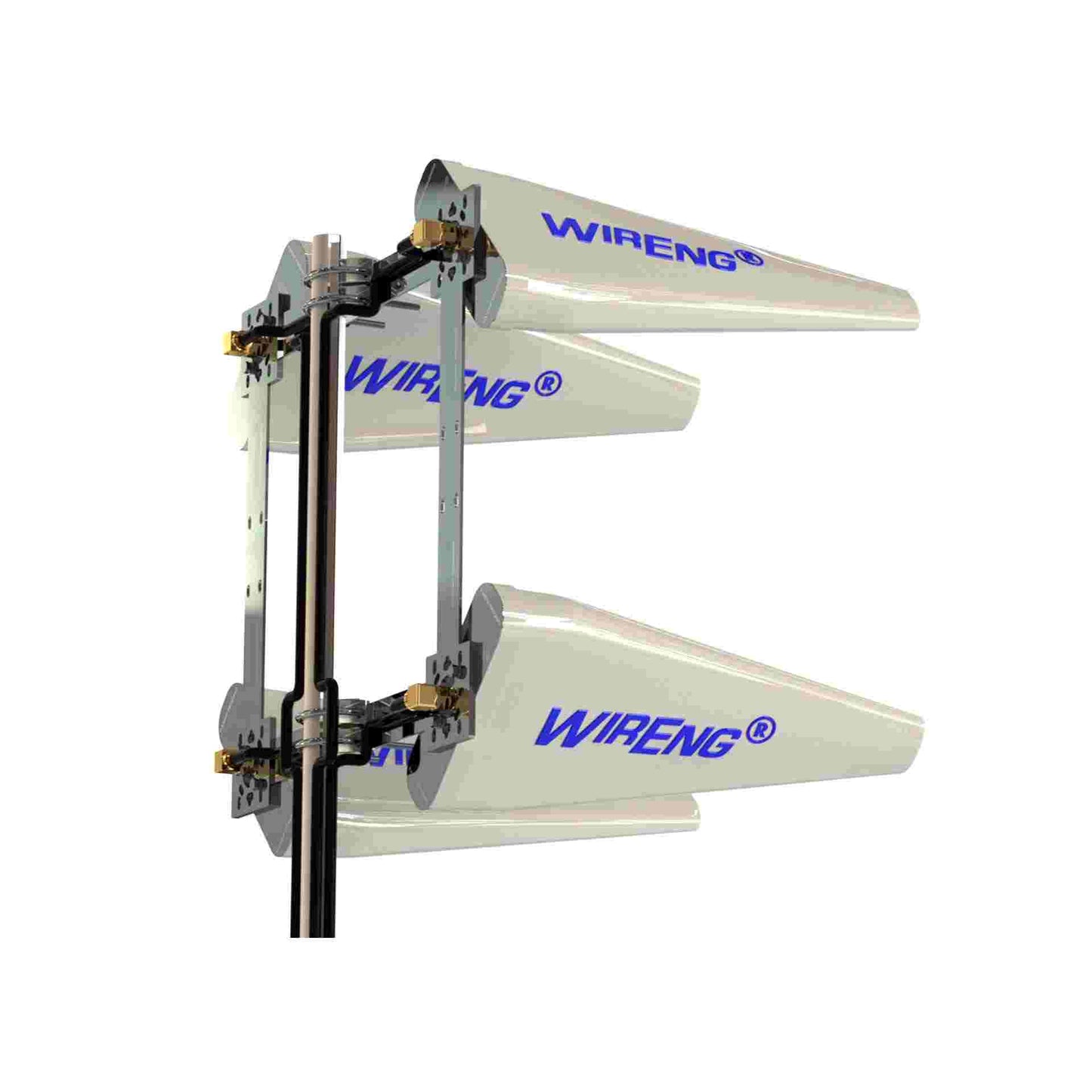

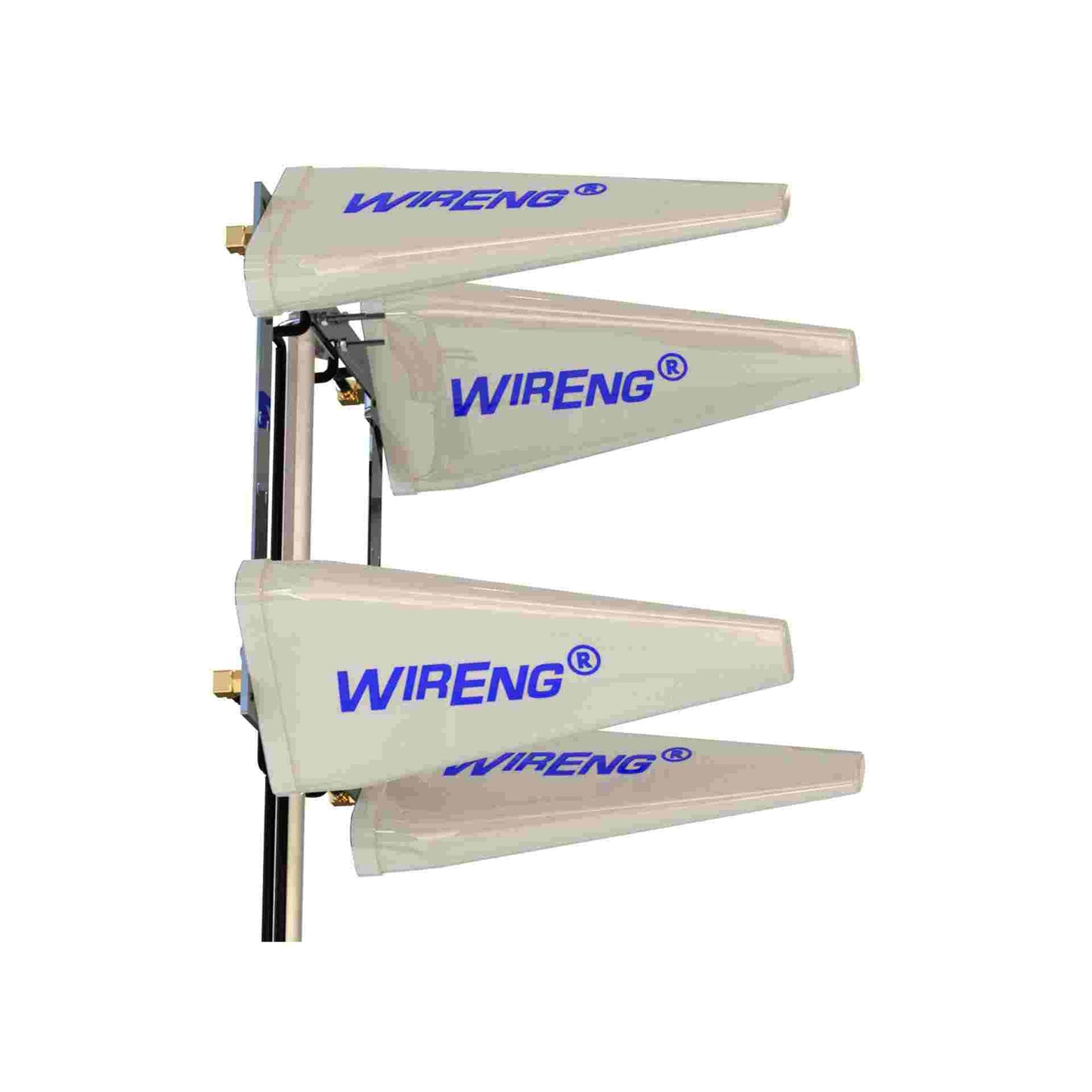

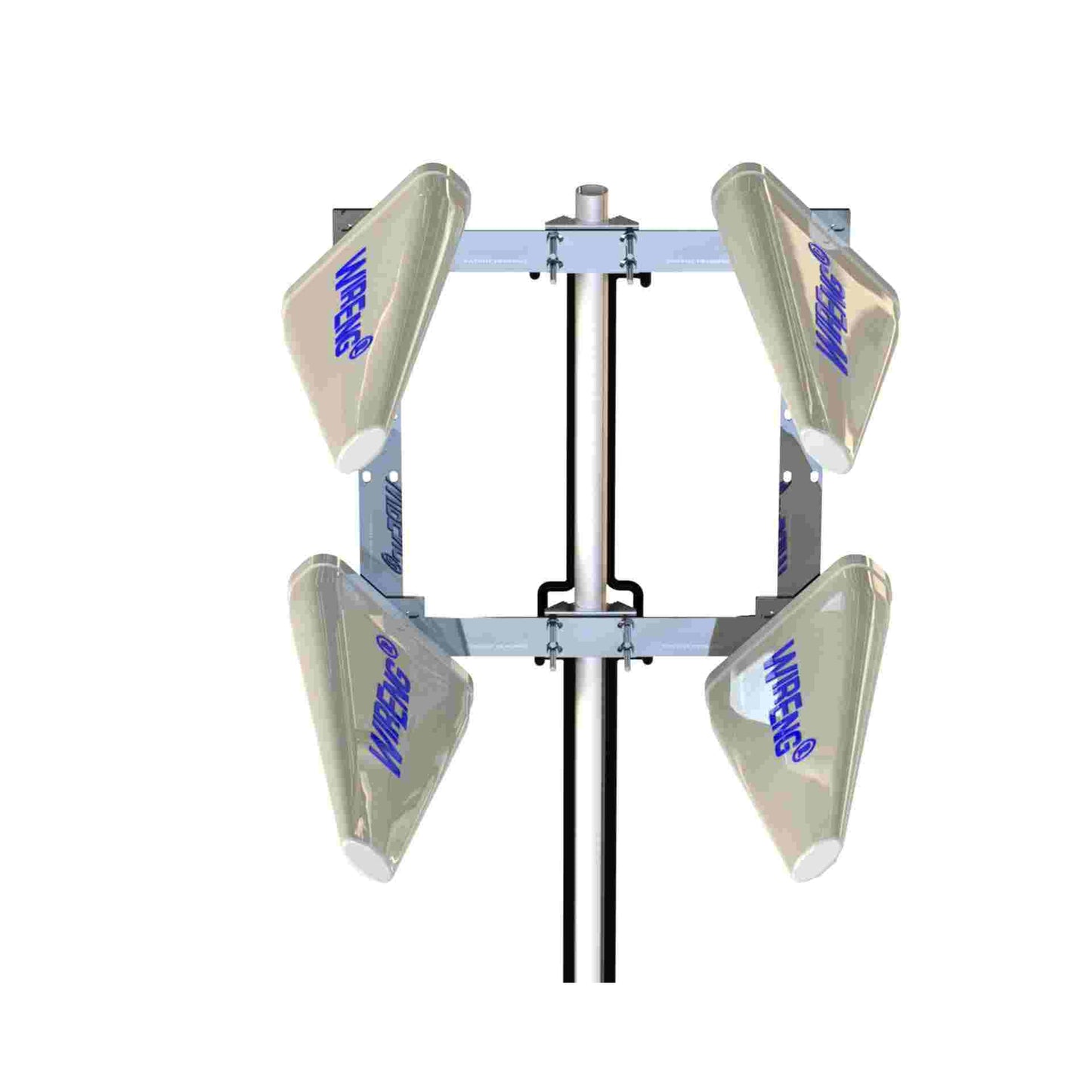

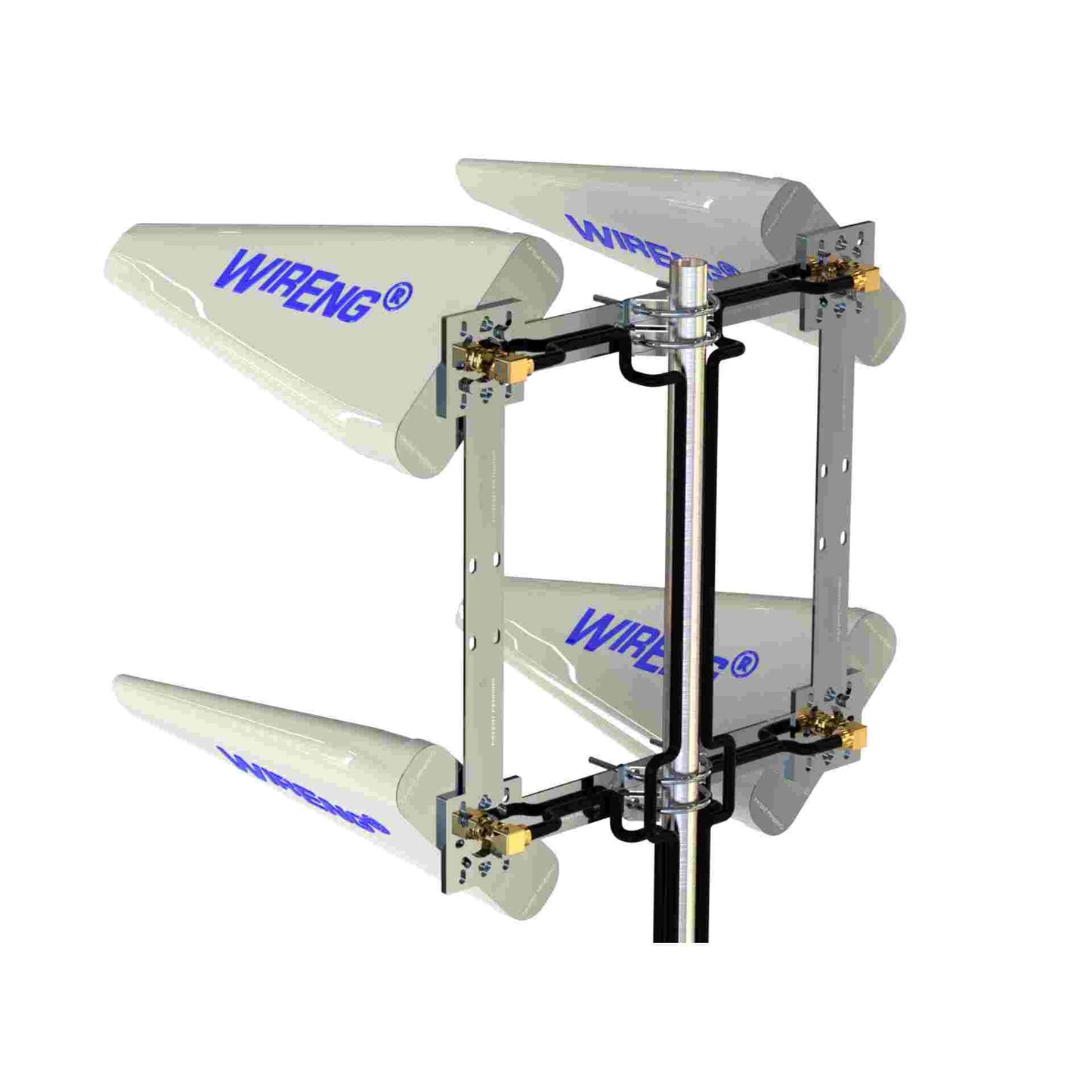

WideAnt4-5G™ True MIMO 4x4 Quad Antenna for Quad-Connector Aux/Diversity Routers Hotspots Modems 5G/4G/3G/2G Ultra-Wide Band Directional High-Gain

The WideAnt4-5G-4x4™ by WirEng® was the first ever consumer-oriented, fully 5G MIMO 4x4 antenna in the worldwide market when it first launched in January 2019. The WideAnt4-5G-4x4™ by WirEng® is a truly ultra-wide band, MIMO 4x4 (operator tower is MIMO 4x4 and your modem/router has four distinct cellular antennas or cellular antenna connectors), directional, high-gain antenna fully supporting all 5G/4G/3G/2G bands worldwide. The WideAnt4-5G-4x4™ by WirEng® is also fully enclosed into anti-UV, thick acrylonitrile-butadiene-styrene plastic for flawless operation under all weather conditions, and it also possesses an ultra-low reflection coefficient, with a VSWR of only 1:1.0 to 1:1.5 over it's full range of 450 MHz to 6000 MHz. The WideAnt4-5G-4x4™ by WirEng® uses 24k gold, stainless steel, and copper, and has on-radome N-type, fully gold-plated connectors for maximum reliability, durability, and RF power transfer. The WideAnt4-5G-4x4™ by WirEng® is a semi-industrial grade antenna (since fully industrial-grade antennas must user glass fiber) and is recommended for any 4x4 MIMO (four connectors for the cellular antennas) modem, router, and hotspot to drastically increase download and upload data speeds even in very fringe, low-signal areas. The WideAnt4-5G-4x4™ by WirEng® includes four WirEng®'s marine-grade, fully stainless-steel MIMOMount™ for strict MIMO compliance and ease of installation. The recommended MIMO configuration is slanted (45 degrees) but all combinations are possible (vertical-vertical, horizontal-vertical, etc.). Extended 2-year warranty included. Patent pending.

Main Features

True MIMO 4x4 and Directional (needs precise aiming)
All Cellular Bands Supported Worldwide
Drastically Increases Upload and Download Data Speeds
For All Routers, Hotspots, and Modems with Quadruple External Antenna
Stainless Steel Back Shield and Hardware
Semi Industrial Grade (Anti-UV ABS)
24K Gold Plated N-Connector on Radome
Extended Operating Temperature Range of -25° to +85° C
High Input Power (up to 250 W Continuous)
Strong and Durable
IP67 Rating (Protected Against Dust, Strong Water Jets, and Waves)
UL94 V-0 Flammability Rating
USA and International Trademark Current. Patent Pending

Technical Specifications

Operating frequency range, MHz: 450 to 6000
Radiation type: Directional
Polarization: Vertical / Slanted / Horizontal
Nominal impedance, Ohm: 50
Acceptable impedance range, Ohm: 45 to 78
Signal gain, dBi: 4 x 7 to 14
VSWR: 1:1 to 1:1.5
IM3 intermodulation, dBc: -156
Radome material: UV-Treated ABS
Shield material: Stainless Steel
Internal elements main material: Alloy
Bolt/nuts/washers/lockers material: Stainless Steel
Color: Off White
Wind resistance, km/h: 215
Storage temperature, °C: -35 to 115
Environmental rating: EN 300 019-2-4
Connector type: Gold-Plated N-Type
Mount type: Pole
Flammability Rating: UL94 V-0
International Protection Marking: IP67
Weight, kg (pounds): 7.92 kg
(17.4 lbs)
Dimensions, cm (inches): 52 x 57 x 57 cm
(21 x 22.5 x 22.5 in)
Suitable markets: Worldwide
Warranty: 2 Years
