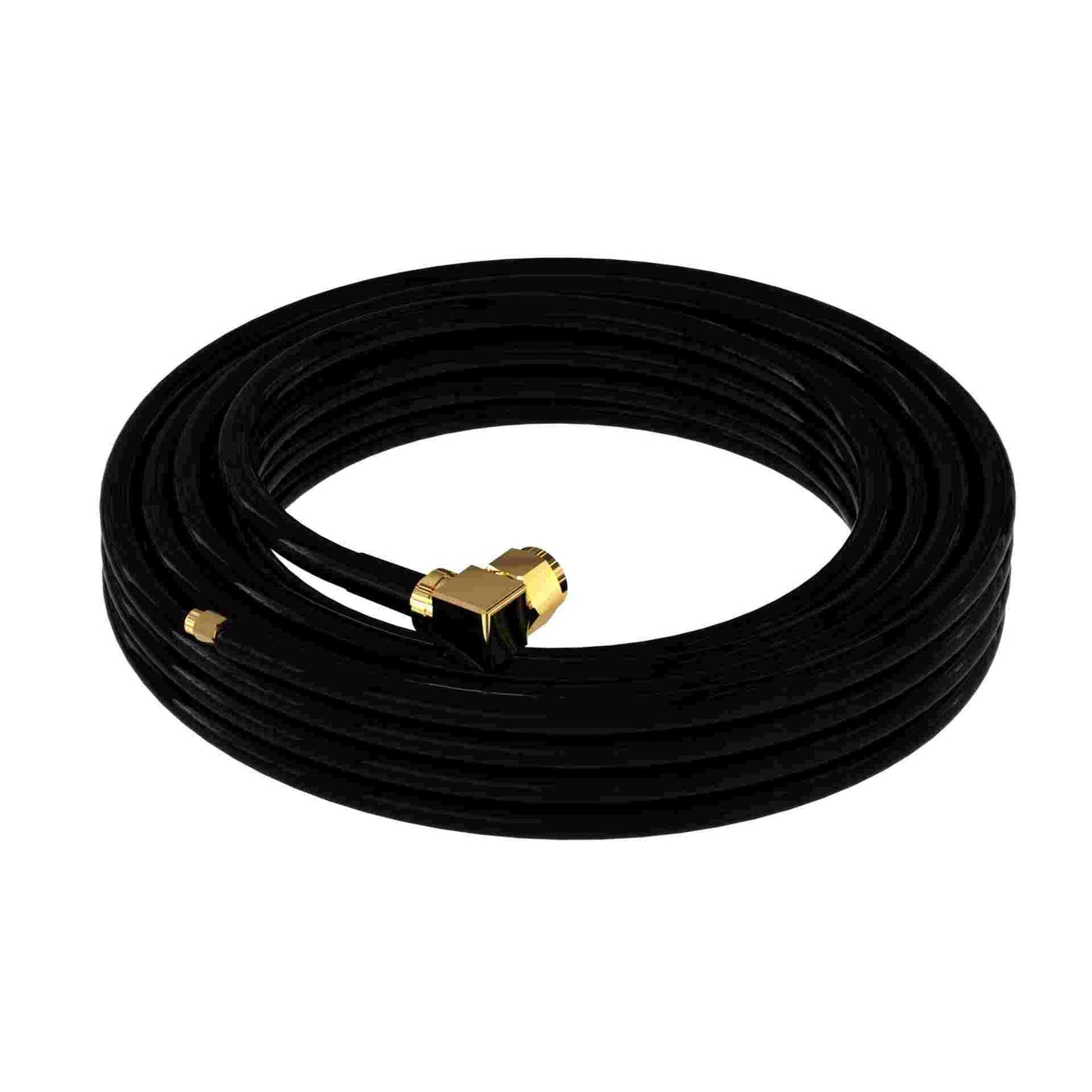

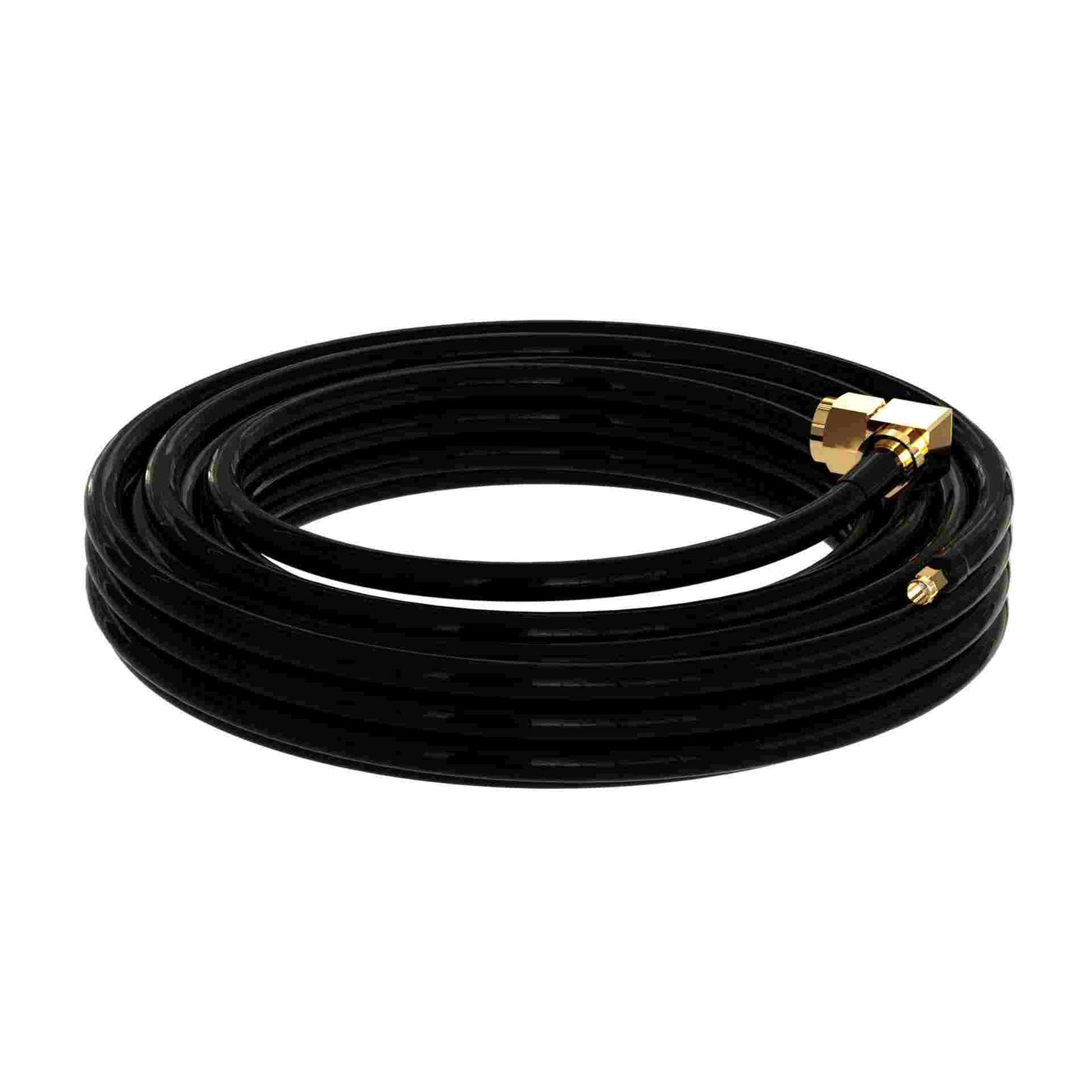

WRG400™ 10 Meters (32.8 Feet) Coaxial Cable with Straight SMA and Right-Angle N Male 24K Gold Plated Connectors Industrial Ultra Low Loss Marine
WRG400™ 10 Meters (32.8 Feet) Coaxial Cable with Straight SMA and Right-Angle N Male 24K Gold Plated Connectors Industrial Ultra Low Loss Marine
Couldn't load pickup availability
The WRG400™ coaxial cables series is WirEng®'s answer to the significantly higher frequencies introduced by the cellular 5G LTE bands, of up to 6200 MHz. The WRG400™ has a diameter of 10.3 mm (0.41 inches) which is almost twice as much as regular coaxial cables, and employs top quality plastics and metals to ensure ultra-low loss behavior and ultra-low total parasitic capacitance, for operational frequencies of up to 6200MHz, which means every possible cellular band worldwide. This latest version of the WirEng® WRG400™ series features 24K gold-plated connectors for maximum durability and near-perfect conductivity. A length of 10 meters (33 feet) of WRG400™ cable exhibits a typical attenuation of 1.0 dB at 500 MHz, 2.0 dB at 1700 MHz, 3.1 dB at 4000 MHz, and 3.9 dB at 6000 MHz. Coaxial cables within the WRG400™ series are also quite flexible and can be used indoors, outdoors, or even buried underground. Every WRG400™ main cable (patch cables excluded) includes a short SMA to SMA strain-relief cable to reduce the force exerted by the cable when connected to your device. Unlike economy cables, WirEng®'a coaxial cables feature extremely strong connections using multiple bonding points, and are made one by one with skilled craftsmanship, and individually tested for performance that meets or exceeds the declared specifications. Hence, WirEng®'s coaxial cables are of industrial quality and can be used in mission-critical applications. The WRG400™ by Wireng® coaxial cables include a two-year warranty period.
Main Features
Top Quality and Durable
Made with Real Teflon®
Copper-Plated Central Conductor
Very Low Parasitic Capacitance
Fairly Flexible
Industrial Strength and Buriable
Very Thick Shielding Braid
Approximately 0.15 dB of Signal Loss per Meter at 850 MHz
Approximately 0.3 dB of Signal Loss per Meter at 1900 MHz
Approximately 0.4 dB of Signal Loss per Meter at 3600 MHz
IP67 Rating (Protected Against Dust, Strong Water Jets, and Waves)
UL94 V-0 Flammability Rating
USA and International Trademark Current. Patent Pending
Technical Specifications
Operating frequency range, MHz: 450 to 6200
Radiation type: -
Polarization: -
Nominal impedance, Ohm: 50
Acceptable impedance range, Ohm: 45 to 78
Signal gain, dBi: -
VSWR: -
IM3 intermodulation, dBc: -
Radome material: -
Shield material: Alloy
Internal elements main material: -
Bolt/nuts/washers/lockers material: -
Color: Black
Wind resistance, km/h: -
Storage temperature, °C: -50 to 150
Environmental rating: EN 300 019-2-4
Connector type: Gold-Plated SMA / N
Mount type: -
Flammability Rating: UL94 V-0
International Protection Marking: IP67
Weight, kg (pounds): 1.35 kg
(2.97 lbs)
Dimensions, cm (inches): 30 x 30 x 5 cm
(11.81 x 11.81 x 1.96 in)
Suitable markets: Worldwide
Warranty: 2 Years
